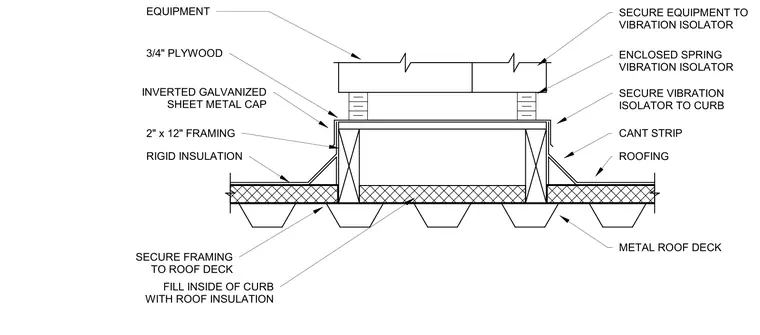

The assembly is built over a metal roof deck with roof insulation filling the interior of the curb. Framing consists of 2" x 12" wood members secured directly to the roof deck, topped with three-quarter-inch plywood and capped with an inverted galvanized sheet metal cap. Rigid insulation surrounds the exterior of the curb, transitioning into the roofing membrane via a cant strip. Mechanical equipment mounts to the top of the curb using enclosed spring vibration isolators, which are securely anchored to both the equipment and the curb structure.
ROOFING CANT STRIP SECURE EQUIPMENT TO VIBRATION ISOLATOR SECURE FRAMING TO ROOF DECK RIGID INSULATION 2" x 12" FRAMING INVERTED GALVANIZED SHEET METAL CAP METAL ROOF DECK ENCLOSED SPRING VIBRATION ISOLATOR 3/4" PLYWOOD EQUIPMENT SECURE VIBRATION ISOLATOR TO CURB FILL INSIDE OF CURB WITH ROOF INSULATION
