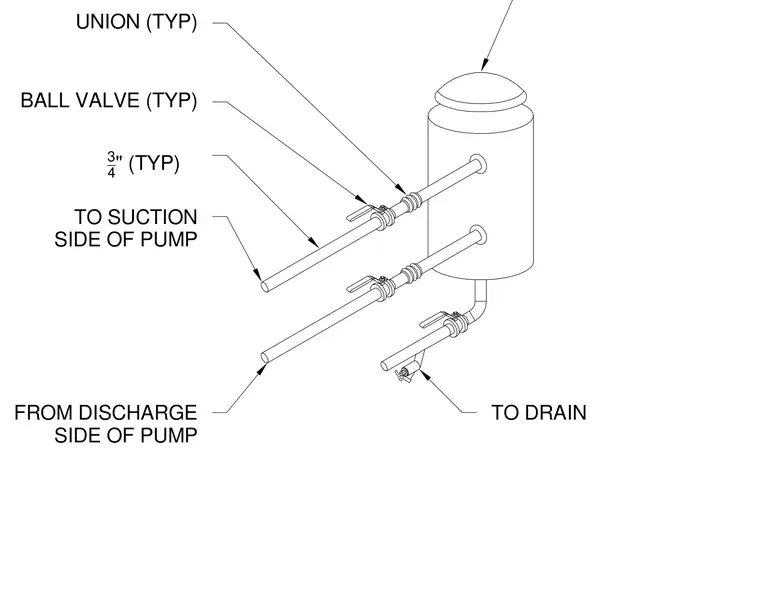

A chemical pot feeder connects to a mechanical piping system with three-quarter-inch piping typically equipped with unions and ball valves. The upper line routes to the suction side of the pump, while the middle line routes from the discharge side of the pump. A bottom drain line equipped with a valve allows for system purging and maintenance.
UNION (TYP) BALL VALVE (TYP) 3_ 4 " (TYP) TO SUCTION SIDE OF PUMP FROM DISCHARGE SIDE OF PUMP TO DRAIN
