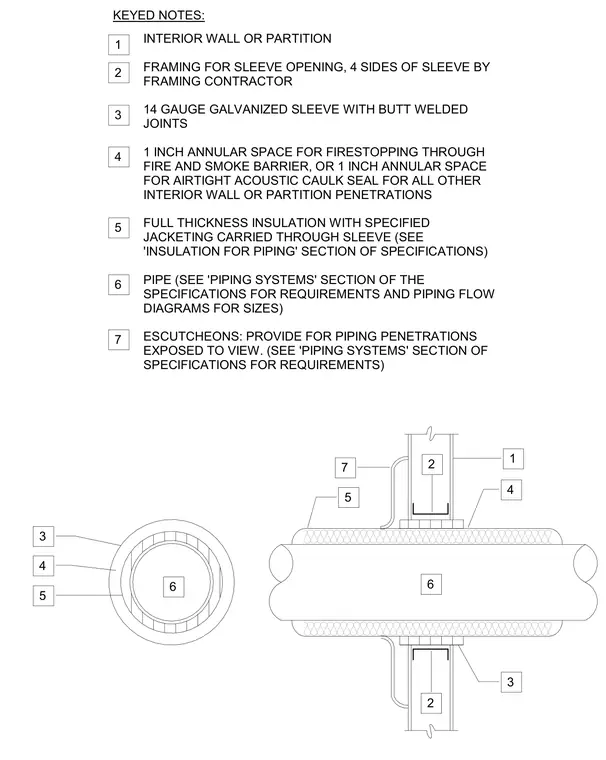

An interior wall or partition opening is framed on all four sides by the framing contractor to receive a fourteen gauge galvanized steel sleeve with butt welded joints. A one-inch annular space surrounds the pipe for firestopping through fire and smoke barriers, or for an airtight acoustic caulk seal at all other interior partition penetrations. Full thickness insulation with specified jacketing is carried continuously through the sleeve. Escutcheons are provided for piping penetrations exposed to view.
1 2 INTERIOR WALL OR PARTITION FRAMING FOR SLEEVE OPENING, 4 SIDES OF SLEEVE BY FRAMING CONTRACTOR 14 GAUGE GALVANIZED SLEEVE WITH BUTT WELDED JOINTS 1 INCH ANNULAR SPACE FOR FIRESTOPPING THROUGH FIRE AND SMOKE BARRIER, OR 1 INCH ANNULAR SPACE FOR AIRTIGHT ACOUSTIC CAULK SEAL FOR ALL OTHER INTERIOR WALL OR PARTITION PENETRATIONS FULL THICKNESS INSULATION WITH SPECIFIED JACKETING CARRIED THROUGH SLEEVE (SEE 'INSULATION FOR PIPING' SECTION OF SPECIFICATIONS) PIPE (SEE 'PIPING SYSTEMS' SECTION OF THE SPECIFICATIONS FOR REQUIREMENTS AND PIPING FLOW DIAGRAMS FOR SIZES) ESCUTCHEONS: PROVIDE FOR PIPING PENETRATIONS EXPOSED TO VIEW. (SEE 'PIPING SYSTEMS' SECTION OF SPECIFICATIONS FOR REQUIREMENTS) 3 4 5 6 7 7 3 4 5 2 3 6 2 1 4 5 6 KEYED NOTES:
