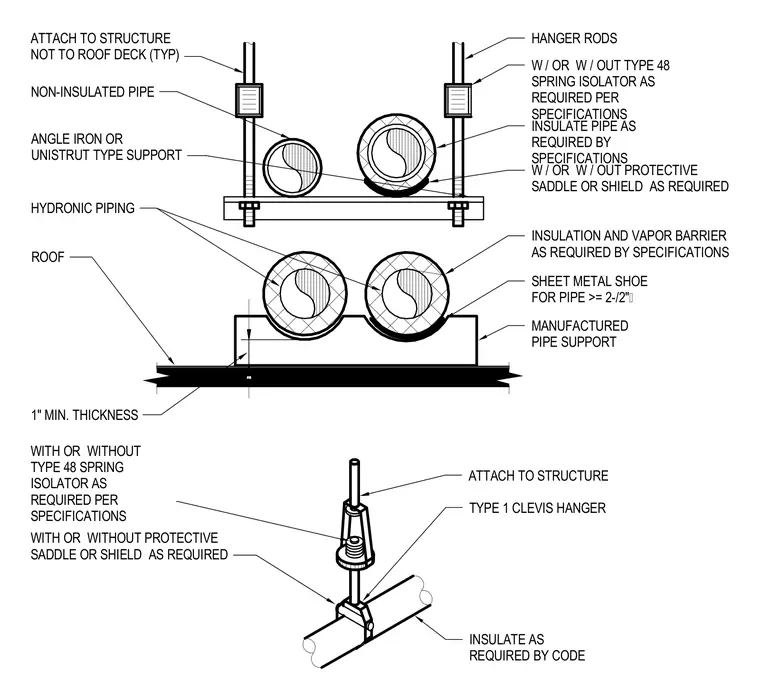

Hydronic piping is supported from the building structure using hanger rods equipped with optional Type 48 spring isolators and protective saddles as specified. Uninsulated and insulated pipes rest on angle iron or Unistrut trapeze supports, or on manufactured roof pipe supports featuring sheet metal shoes for pipes greater than or equal to two and a half inches in diameter. Insulation and vapor barriers are applied as required by specifications. Individual pipe runs utilize Type 1 clevis hangers attached strictly to the structural framing rather than the roof deck.
HANGER RODS W / OR W / OUT TYPE 48 SPRING ISOLATOR AS REQUIRED PER SPECIFICATIONS W / OR W / OUT PROTECTIVE SADDLE OR SHIELD AS REQUIRED ANGLE IRON OR UNISTRUT TYPE SUPPORT INSULATE PIPE AS REQUIRED BY SPECIFICATIONS NON-INSULATED PIPE HYDRONIC PIPING INSULATION AND VAPOR BARRIER AS REQUIRED BY SPECIFICATIONS ATTACH TO STRUCTURE TYPE 1 CLEVIS HANGER ATTACH TO STRUCTURE NOT TO ROOF DECK (TYP) INSULATE AS REQUIRED BY CODE WITH OR WITHOUT PROTECTIVE SADDLE OR SHIELD AS REQUIRED WITH OR WITHOUT TYPE 48 SPRING ISOLATOR AS REQUIRED PER SPECIFICATIONS ROOF SHEET METAL SHOE FOR PIPE >= 2-/2"∅ MANUFACTURED PIPE SUPPORT 1" MIN. THICKNESS
