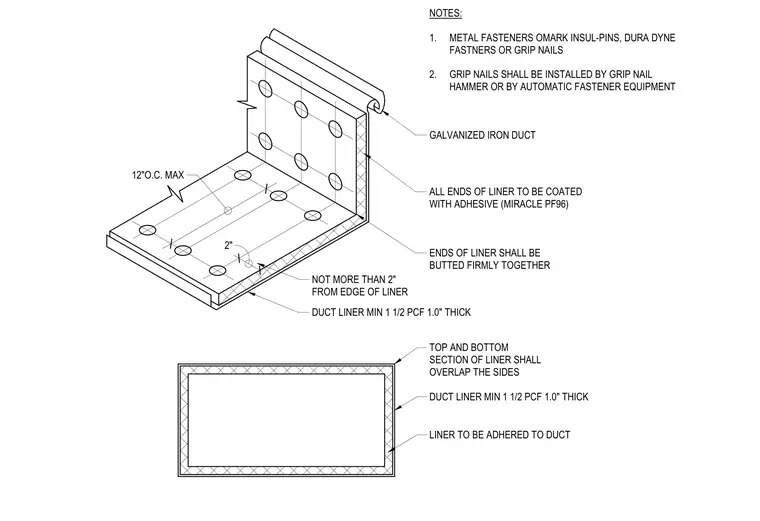

Internal duct insulation consists of a minimum 1.5 PCF density and 1.0 inch thick duct liner adhered to the interior of a galvanized iron duct. All liner ends are coated with adhesive such as Miracle PF96 and butted firmly together with top and bottom sections overlapping the sides. Metal fasteners like Omark Insul-Pins, Dura Dyne fasteners, or grip nails are installed at a maximum spacing of 12 inches on center. Fasteners are placed not more than 2 inches from the edge of the liner and installed using a grip nail hammer or automatic fastener equipment.
12"O.C. MAX 2" NOTES: 1. METAL FASTENERS OMARK INSUL-PINS, DURA DYNE FASTNERS OR GRIP NAILS 2. GRIP NAILS SHALL BE INSTALLED BY GRIP NAIL HAMMER OR BY AUTOMATIC FASTENER EQUIPMENT GALVANIZED IRON DUCT ALL ENDS OF LINER TO BE COATED WITH ADHESIVE (MIRACLE PF96) ENDS OF LINER SHALL BE BUTTED FIRMLY TOGETHER DUCT LINER MIN 1 1/2 PCF 1.0" THICK NOT MORE THAN 2" FROM EDGE OF LINER TOP AND BOTTOM SECTION OF LINER SHALL OVERLAP THE SIDES DUCT LINER MIN 1 1/2 PCF 1.0" THICK LINER TO BE ADHERED TO DUCT
