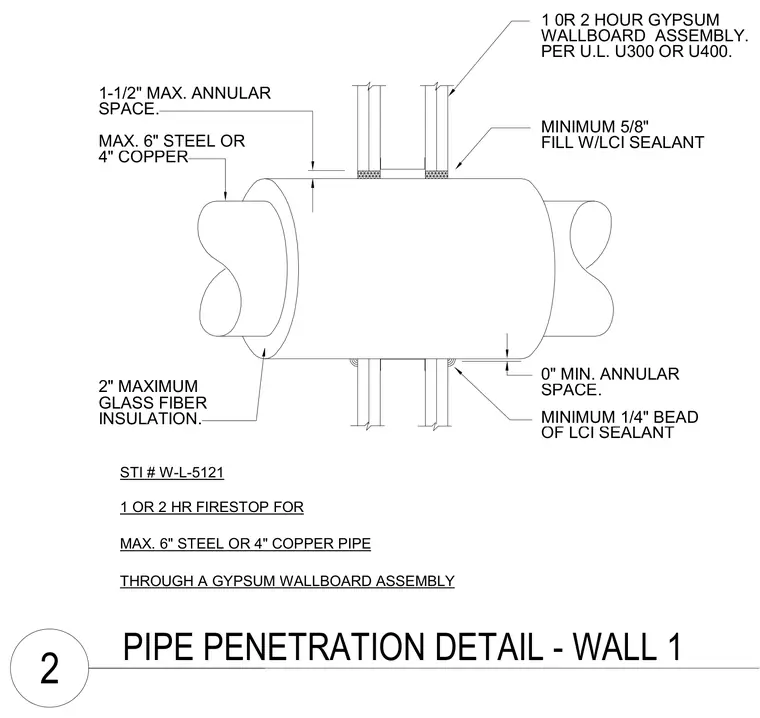

A pipe penetration through a one or two-hour gypsum wallboard assembly accommodates steel pipe up to six inches or copper pipe up to four inches in diameter. The assembly permits a maximum of two inches of glass fiber insulation wrapped around the pipe. Annular space ranges from zero inches minimum to one and one-half inches maximum, with a minimum five-eighths inch space filled with firestop sealant. A minimum one-quarter inch bead of LCI sealant is applied at the perimeter of the penetration. The firestop system complies with STI listing W-L-5121 and UL assemblies U300 or U400.
1 OR 2 HR FIRESTOP FOR MAX. 6" STEEL OR 4" COPPER PIPE THROUGH A GYPSUM WALLBOARD ASSEMBLY 2" MAXIMUM INSULATION. GLASS FIBER STI # W-L-5121 4" COPPER MAX. 6" STEEL OR 1-1/2" MAX. ANNULAR SPACE. MINIMUM 5/8" SPACE. OF LCI SEALANT MINIMUM 1/4" BEAD FILL W/LCI SEALANT 0" MIN. ANNULAR 1 0R 2 HOUR GYPSUM WALLBOARD ASSEMBLY. PER U.L. U300 OR U400. PIPE PENETRATION DETAIL - WALL 1 2
