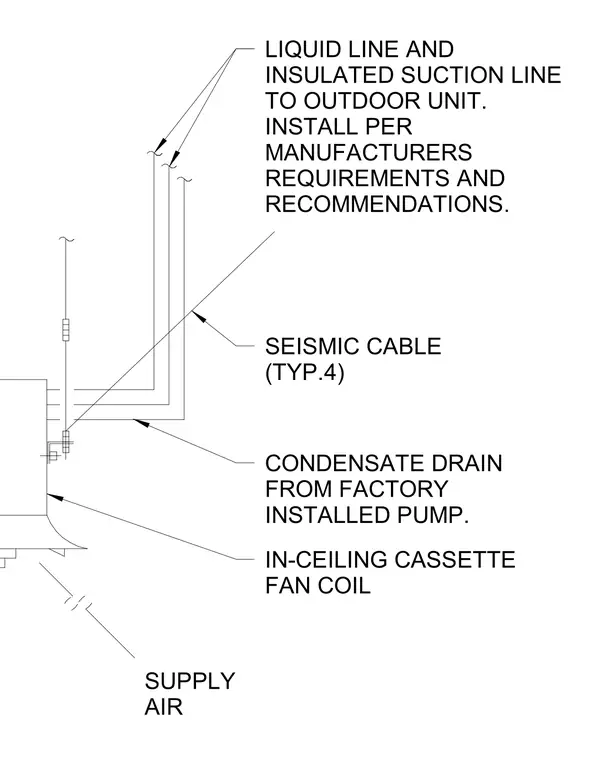

An in-ceiling cassette fan coil unit is suspended within the ceiling plenum and tied back with four seismic cables for lateral stability. A condensate drain line runs from the unit's factory-installed pump, while liquid and insulated suction lines route refrigerant to the outdoor unit. All equipment and piping must be installed in strict accordance with the manufacturer's requirements and recommendations.
SUPPLY AIR IN-CEILING CASSETTE FAN COIL CONDENSATE DRAIN FROM FACTORY INSTALLED PUMP. SEISMIC CABLE (TYP.4) LIQUID LINE AND INSULATED SUCTION LINE TO OUTDOOR UNIT. INSTALL PER MANUFACTURERS REQUIREMENTS AND RECOMMENDATIONS.
