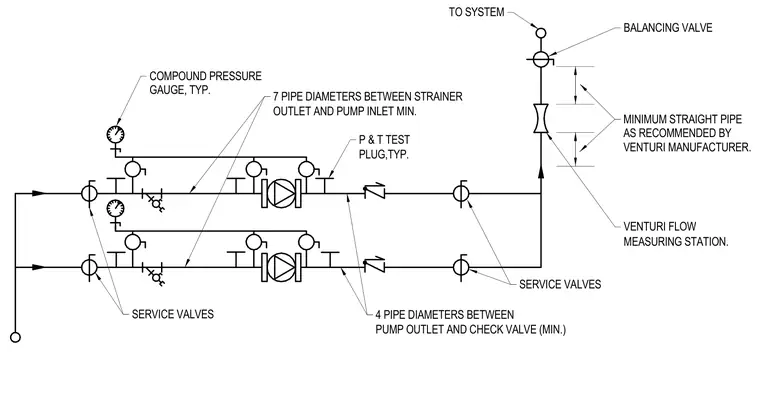

This parallel inline pump piping arrangement includes service valves isolating each pump circuit along with pressure and temperature test plugs and compound pressure gauges typically located throughout the assembly. A minimum straight pipe distance of seven pipe diameters is required between the strainer outlet and the pump inlet, while a minimum of four pipe diameters is maintained between the pump outlet and the check valve. The discharge side incorporates a venturi flow measuring station followed by a balancing valve prior to connecting to the main system. Minimum straight pipe lengths are maintained as recommended by the venturi manufacturer to ensure accurate flow measurement.
BALANCING VALVE VENTURI FLOW MEASURING STATION. MINIMUM STRAIGHT PIPE AS RECOMMENDED BY VENTURI MANUFACTURER. OUTLET AND PUMP INLET MIN. 7 PIPE DIAMETERS BETWEEN STRAINER PUMP OUTLET AND CHECK VALVE (MIN.) 4 PIPE DIAMETERS BETWEEN SERVICE VALVES TO SYSTEM PLUG,TYP. P & T TEST COMPOUND PRESSURE GAUGE, TYP. SERVICE VALVES
