Mechanical · M-CBMF3

Pipe Hangers Details

Materials

Elements

About this detail

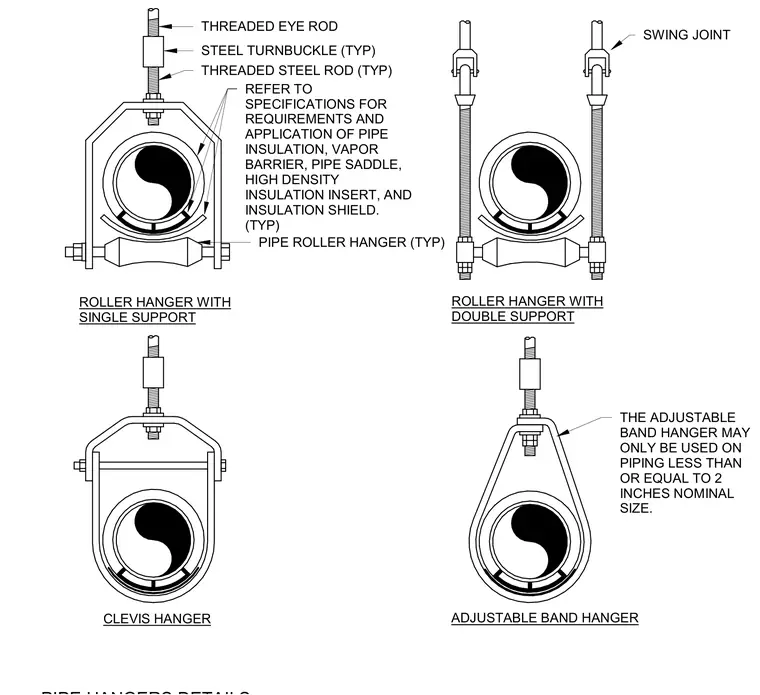

Suspended piping configurations include roller hangers with single and double support, clevis hangers, and adjustable band hangers restricted to piping two inches or smaller in nominal size. Each assembly integrates a threaded steel rod suspended by a threaded eye rod and adjusted via a steel turnbuckle. Roller hanger assemblies incorporate a pipe roller, pipe saddle, high-density insulation insert, insulation shield, vapor barrier, and pipe insulation per specifications. A swing joint is included on double support configurations.
