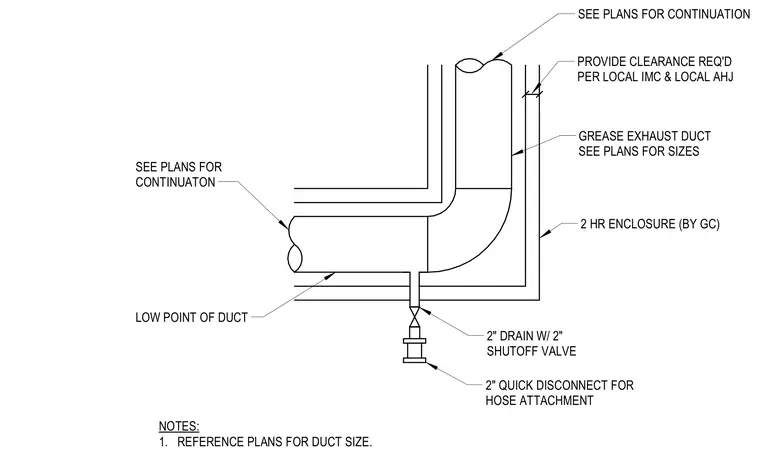

A grease exhaust duct runs within a two-hour rated enclosure provided by the general contractor, maintaining code-required clearances per the local mechanical code and authority having jurisdiction. A two-inch drain with a shutoff valve and quick-disconnect fitting connects to the low point of the duct for maintenance and cleaning.
PROVIDE CLEARANCE REQ'D PER LOCAL IMC & LOCAL AHJ SEE PLANS FOR CONTINUATION GREASE EXHAUST DUCT SEE PLANS FOR SIZES 2 HR ENCLOSURE (BY GC) SEE PLANS FOR CONTINUATON LOW POINT OF DUCT 2" DRAIN W/ 2" SHUTOFF VALVE 2" QUICK DISCONNECT FOR HOSE ATTACHMENT NOTES: 1. REFERENCE PLANS FOR DUCT SIZE.
