An inline fan is suspended from overhead structure using four three-eighths-inch all-thread rods secured with Z-clips and neoprene isolators with double nuts. Six-inch flexible duct connections join each end of the fan housing to the incoming and outgoing ductwork. A duct-mounted backdraft damper is installed at the discharge for relief air fan applications. Hangers and supports comply with specification section 230530.

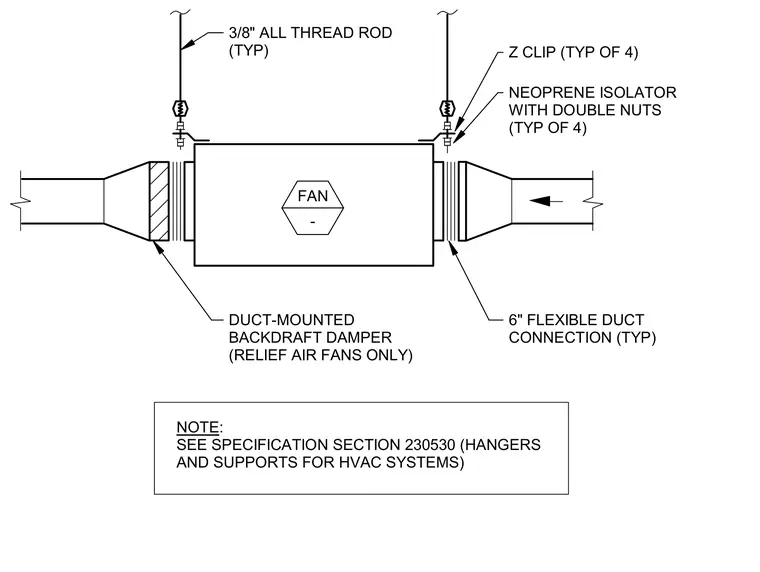

Z CLIP (TYP OF 4) 6" FLEXIBLE DUCT CONNECTION (TYP) 3/8" ALL THREAD ROD (TYP) DUCT-MOUNTED BACKDRAFT DAMPER (RELIEF AIR FANS ONLY) NEOPRENE ISOLATOR WITH DOUBLE NUTS (TYP OF 4) NOTE: SEE SPECIFICATION SECTION 230530 (HANGERS AND SUPPORTS FOR HVAC SYSTEMS) - FAN
