A custom stainless steel manifold enclosure featuring a lockable, hinged access panel is mounted at twelve inches above the finished floor. All manifold components fit within the enclosure, which has maximum dimensions of forty-two inches wide by twenty-four inches tall by eight inches deep. Hot water supply and hot water return tubing run from the manifold to the forum slab above. This tubing is protected with a custom shroud matching the enclosure, while piping routes to the RWHX-1 wall.

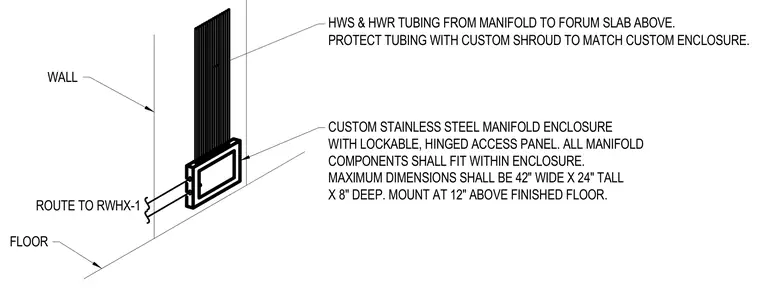

CUSTOM STAINLESS STEEL MANIFOLD ENCLOSURE WITH LOCKABLE, HINGED ACCESS PANEL. ALL MANIFOLD PROTECT TUBING WITH CUSTOM SHROUD TO MATCH CUSTOM ENCLOSURE. FLOOR COMPONENTS SHALL FIT WITHIN ENCLOSURE. MAXIMUM DIMENSIONS SHALL BE 42" WIDE X 24" TALL X 8" DEEP. MOUNT AT 12" ABOVE FINISHED FLOOR. HWS & HWR TUBING FROM MANIFOLD TO FORUM SLAB ABOVE. ROUTE TO RWHX-1 WALL
