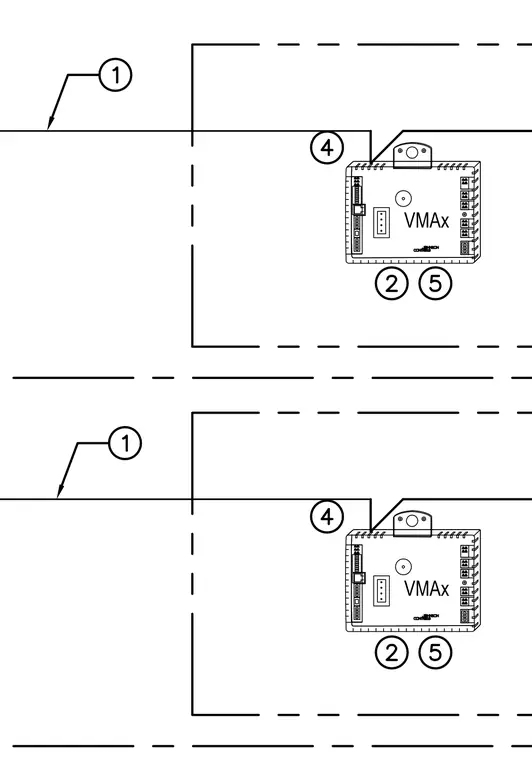

Wiring layout and control connections for VMAX controllers within a mechanical system. The schematic indicates connection lines, control modules, and associated tag callouts for system integration. Proper termination points and routing paths are defined for the controller units.
