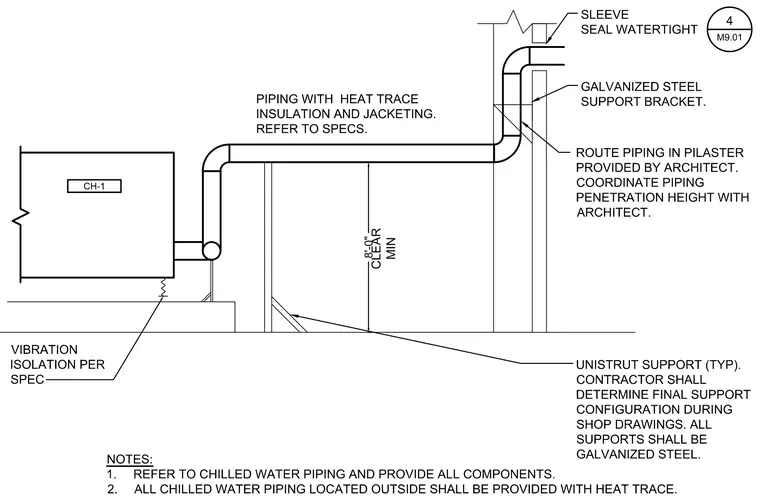

Chilled water piping connects to a chiller unit equipped with vibration isolation per specifications. The piping features heat trace insulation and jacketing, routed through a pilaster provided by the architect with coordination required for the penetration height. Galvanized steel support brackets and Unistrut supports secure the piping, maintaining an eight-foot minimum clearance. A sleeve seal provides a watertight wall penetration for the piping.
