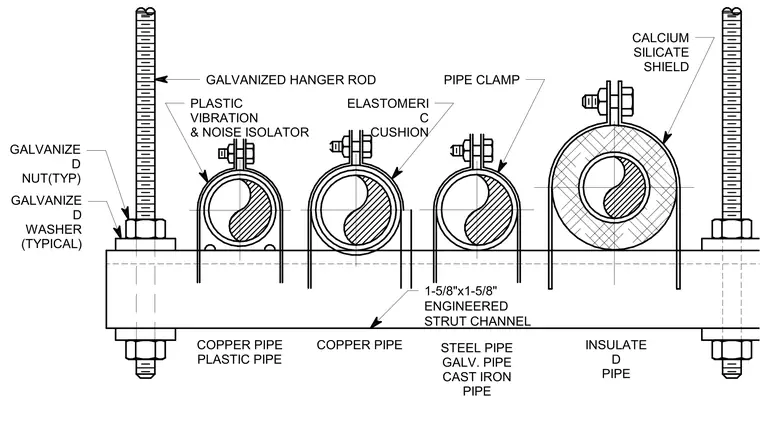

This trapeze hanger assembly supports multiple runs of copper, plastic, steel, galvanized, cast iron, and insulated piping. A 1-5/8" x 1-5/8" engineered strut channel carries the suspended pipes and spans between vertical galvanized hanger rods secured with typical galvanized nuts and washers. Individual pipes are held by pipe clamps equipped with elastomeric cushions or plastic vibration and noise isolators. Insulated pipes utilize a calcium silicate shield to protect the insulation from crushing at the clamp interface.
COPPER PIPE PLASTIC PIPE COPPER PIPE STEEL PIPE GALV. PIPE CAST IRON PIPE INSULATE D PIPE 1-5/8"x1-5/8" ENGINEERED STRUT CHANNEL PIPE CLAMP ELASTOMERI C CUSHION PLASTIC VIBRATION & NOISE ISOLATOR GALVANIZED HANGER ROD CALCIUM SILICATE SHIELD GALVANIZE D NUT(TYP) GALVANIZE D WASHER (TYPICAL)
