Mechanical · M-C3293

Mechanical Support Upper Attachment Details at Concrete

Materials

Concrete Steel

Elements

Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

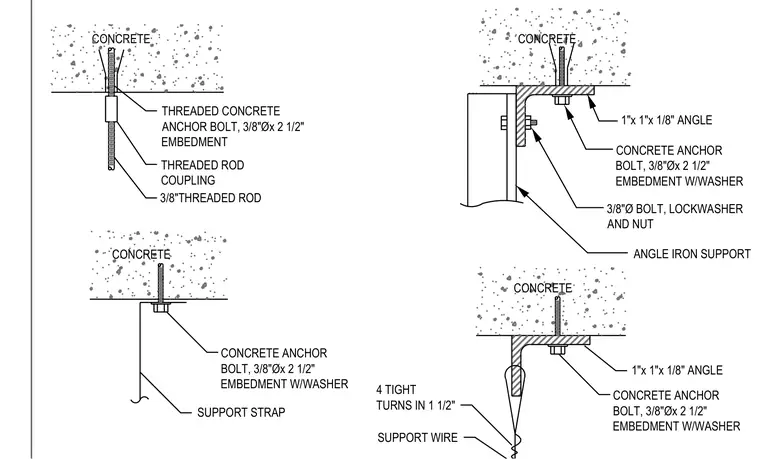

These upper attachment details secure mechanical support elements to an overhead concrete substrate using three-eighths-inch diameter concrete anchor bolts with a two-and-a-half-inch embedment and washer. The threaded rod assembly connects via a threaded rod coupling to a threaded concrete anchor bolt embedded in the concrete. The strap and wire supports anchor directly to the concrete with a bolt and washer, while the angle iron support uses one-inch by one-inch by one-eighth-inch steel angles fastened to the concrete anchor and joined to an angle iron support member with a three-eighths-inch diameter bolt, lockwasher, and nut. The wire support option features four tight turns in one and one-half inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
