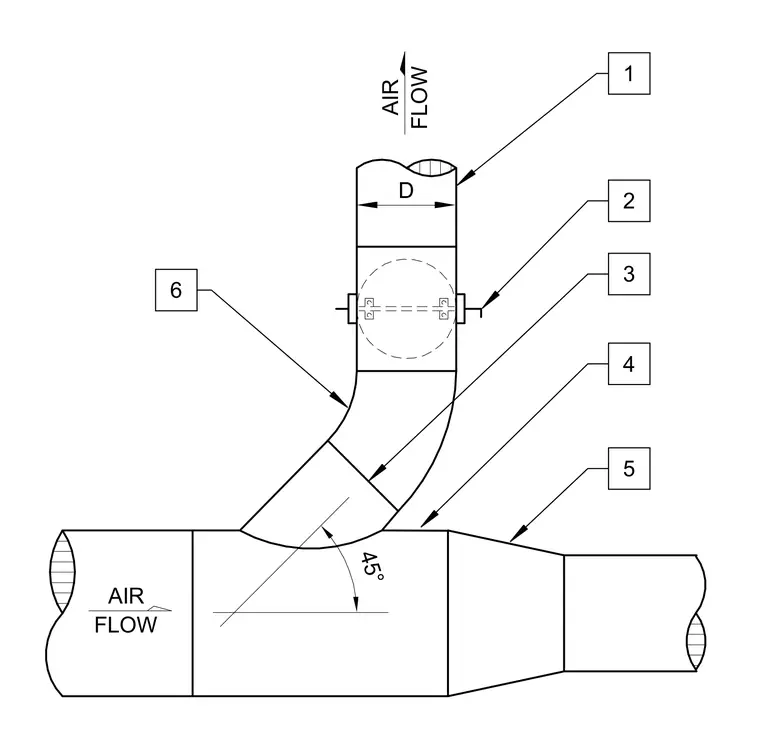

A branch duct connects to a main duct at a forty-five degree angle with directional airflow indicated. The branch incorporates a mechanical damper operated via external linkage and supported by round ductwork.
