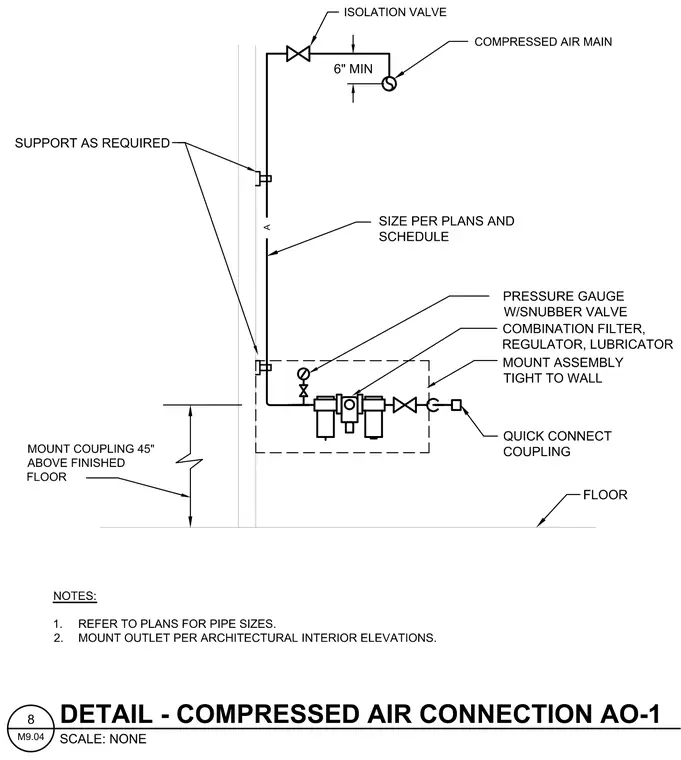

The compressed air main drops vertically and connects to an isolation valve positioned with a six-inch minimum clearance. The vertical drop pipe is sized per plans and schedule and secured to the wall with supports as required. A combination filter, regulator, and lubricator assembly is mounted tight to the wall with a pressure gauge equipped with a snubber valve. The entire mount assembly terminates at a quick connect coupling located forty-five inches above the finished floor. Pipe sizes are referenced per plans, and the outlet is mounted per architectural interior elevations.
