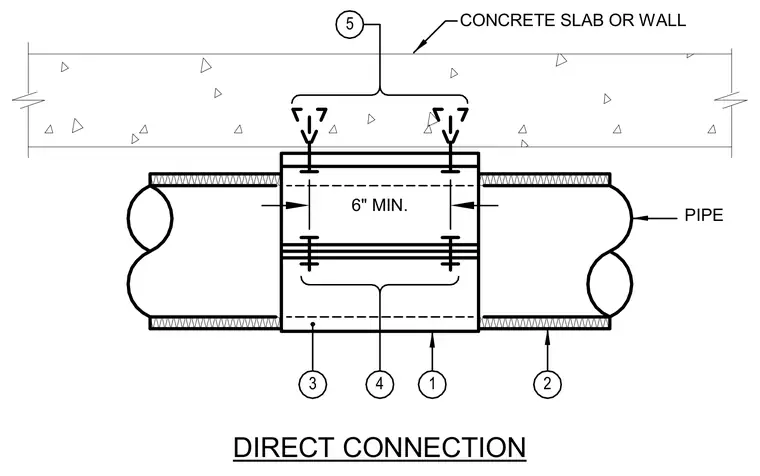

A pipe penetrates through or connects directly to a concrete slab or wall with a six-inch minimum spacing requirement. Mechanical fasteners or anchors secure the connection assembly against the concrete surface. The pipe alignment is maintained through the direct penetration point.
2 PIPE CONCRETE SLAB OR WALL DIRECT CONNECTION 1 4 3 5 6" MIN.
