Copper pipe ranging from three-quarters of an inch through two inches, excluding chilled water systems, is supported by a Tolco figure 202 copper band hanger. When required, pipe insulation encapsulates the hanger to maintain thermal continuity. The assembly accommodates both insulated and non-insulated piping configurations.

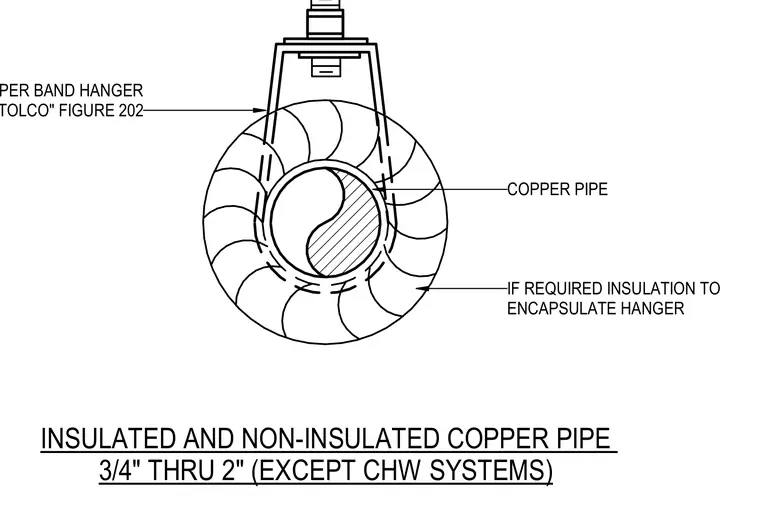

INSULATED AND NON-INSULATED COPPER PIPE 3/4" THRU 2" (EXCEPT CHW SYSTEMS) COPPER PIPE IF REQUIRED INSULATION TO ENCAPSULATE HANGER COPPER BAND HANGER "TOLCO" FIGURE 202
