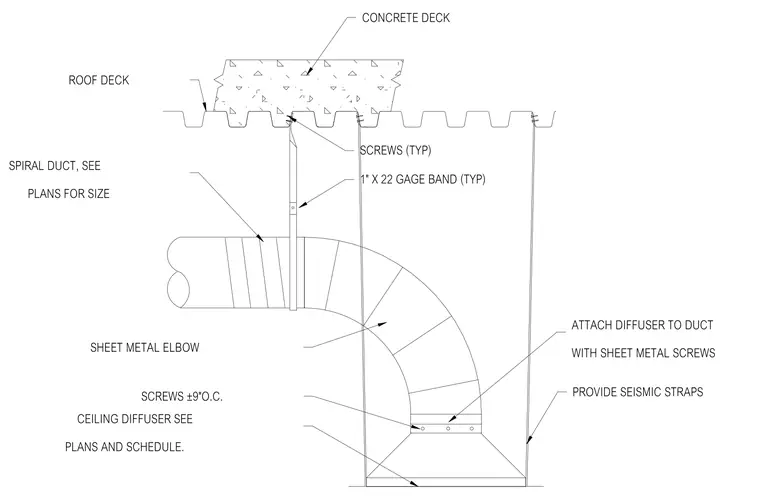

A spiral duct connects to a sheet metal elbow and terminates at a ceiling diffuser, which is attached with sheet metal screws spaced approximately 9 inches on center. The entire assembly is suspended below a concrete deck and metal roof deck using typical 1-inch by 22-gauge metal bands secured with typical screws. Seismic straps are provided for lateral restraint.
SCREWS (TYP) 1" X 22 GAGE BAND (TYP) ATTACH DIFFUSER TO DUCT WITH SHEET METAL SCREWS ROOF DECK SPIRAL DUCT, SEE PLANS FOR SIZE SHEET METAL ELBOW SCREWS ±9"O.C. CEILING DIFFUSER SEE PLANS AND SCHEDULE. CONCRETE DECK PROVIDE SEISMIC STRAPS
