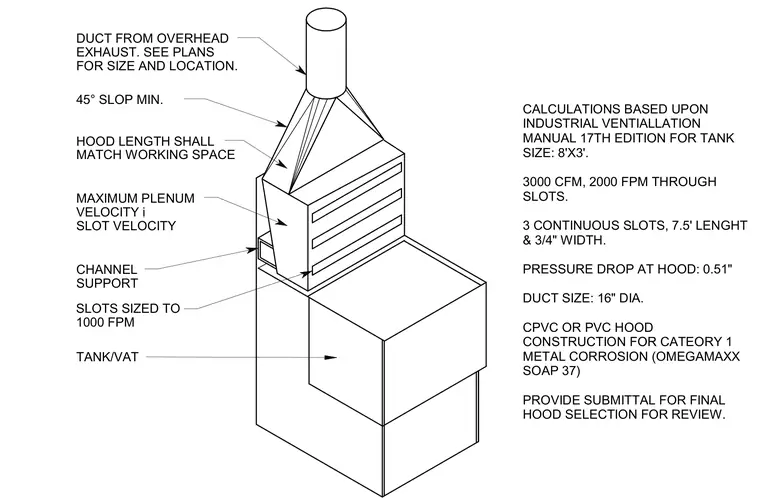

An industrial exhaust hood assembly is positioned over a tank or vat with a channel support framework. The system incorporates three continuous intake slots measuring seven and a half feet in length by three-quarters of an inch wide, delivering a slot velocity of two thousand feet per minute at three thousand cubic feet per minute total airflow. The transitional hood features a forty-five degree minimum slope tapering up to a sixteen-inch diameter circular duct connection from the overhead exhaust. The plenum is constructed from chlorinated polyvinyl chloride or polyvinyl chloride material rated for category one metal corrosion. Calculations follow the industrial ventilation manual seventeenth edition for an eight-foot by three-foot tank size, resulting in a hood pressure drop of fifty-one hundredths of an inch.
DUCT FROM OVERHEAD FOR SIZE AND LOCATION. SLOT VELOCITY VELOCITY i CHANNEL SUPPORT MATCH WORKING SPACE MAXIMUM PLENUM HOOD LENGTH SHALL 45° SLOP MIN. EXHAUST. SEE PLANS SLOTS SIZED TO 1000 FPM TANK/VAT CALCULATIONS BASED UPON INDUSTRIAL VENTIALLATION MANUAL 17TH EDITION FOR TANK SIZE: 8'X3'. 3000 CFM, 2000 FPM THROUGH SLOTS. 3 CONTINUOUS SLOTS, 7.5' LENGHT & 3/4" WIDTH. PRESSURE DROP AT HOOD: 0.51" DUCT SIZE: 16" DIA. CPVC OR PVC HOOD CONSTRUCTION FOR CATEORY 1 METAL CORROSION (OMEGAMAXX SOAP 37) PROVIDE SUBMITTAL FOR FINAL HOOD SELECTION FOR REVIEW.
