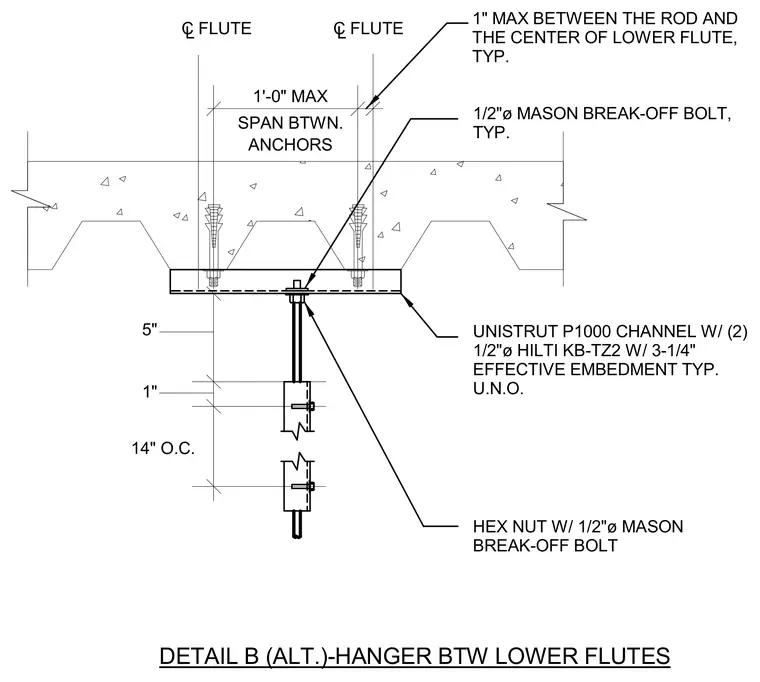

A structural hanger assembly is suspended from the lower flutes of a concrete deck. A Unistrut P1000 channel is anchored to the concrete using two half-inch diameter Hilti KB-TZ2 expansion anchors with a three-and-a-quarter-inch effective embedment, spaced at a maximum of one foot zero inches between anchors. A suspended threaded rod is secured through the Unistrut channel using a hex nut and a half-inch diameter Mason break-off bolt. The hanger maintains a maximum one-inch clearance between the rod and the center of the lower flute.
1'-0" MAX SPAN BTWN. ANCHORS C FLUTE L C FLUTE L 14" O.C. 1" 5" UNISTRUT P1000 CHANNEL W/ (2) 1/2"ø HILTI KB-TZ2 W/ 3-1/4" EFFECTIVE EMBEDMENT TYP. U.N.O. 1/2"ø MASON BREAK-OFF BOLT, TYP. HEX NUT W/ 1/2"ø MASON BREAK-OFF BOLT DETAIL B (ALT.)-HANGER BTW LOWER FLUTES 1" MAX BETWEEN THE ROD AND THE CENTER OF LOWER FLUTE, TYP.
