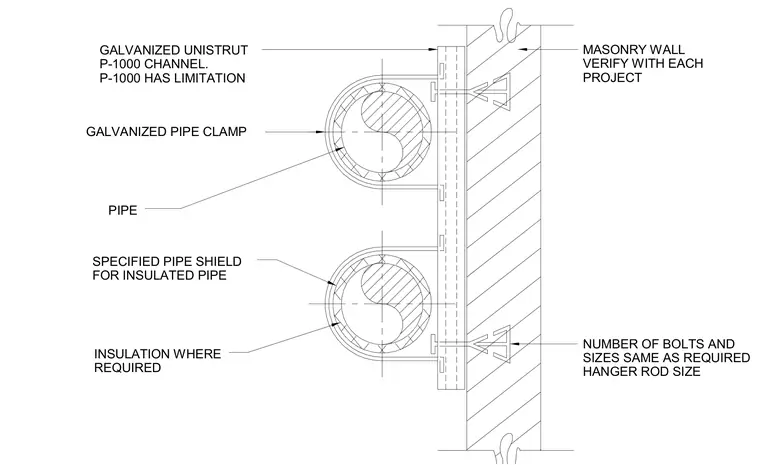

A galvanized Unistrut P-1000 channel is anchored to the masonry wall using bolts sized according to the required hanger rod size. Galvanized pipe clamps secure the pipe to the Unistrut channel. Insulated pipes include a specified pipe shield and insulation where required.
REQUIRED P-1000 CHANNEL. MASONRY WALL PIPE NUMBER OF BOLTS AND SIZES SAME AS REQUIRED HANGER ROD SIZE SPECIFIED PIPE SHIELD FOR INSULATED PIPE INSULATION WHERE GALVANIZED PIPE CLAMP GALVANIZED UNISTRUT VERIFY WITH EACH PROJECT P-1000 HAS LIMITATION
