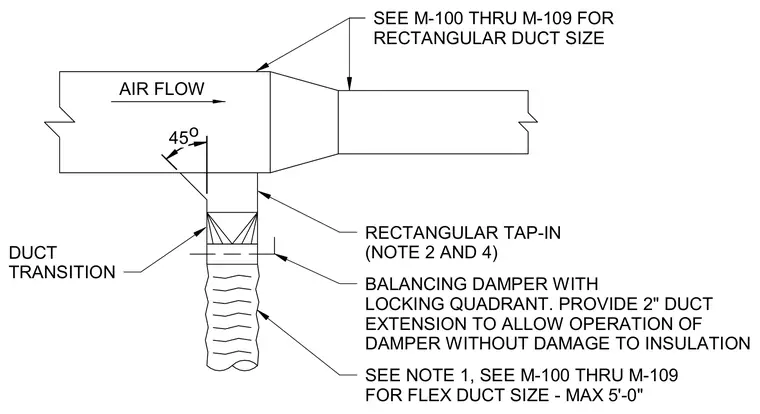

A rectangular main duct transitions to a 45-degree rectangular tap-in with a rectangular duct connection. A balancing damper equipped with a locking quadrant is installed directly below the tap-in. A 2-inch duct extension is provided to allow operation of the damper without damage to insulation. A flexible duct transition connects downstream, limited to a maximum length of 5 feet.
o AIR FLOW 45 SEE M-100 THRU M-109 FOR RECTANGULAR DUCT SIZE RECTANGULAR TAP-IN (NOTE 2 AND 4) BALANCING DAMPER WITH LOCKING QUADRANT. PROVIDE 2" DUCT EXTENSION TO ALLOW OPERATION OF DAMPER WITHOUT DAMAGE TO INSULATION SEE NOTE 1, SEE M-100 THRU M-109 FOR FLEX DUCT SIZE - MAX 5'-0" DUCT TRANSITION
