Mechanical · M-BHBEN

Hot Water Boiler Piping and Equipment Detail

Materials

Elements

About this detail

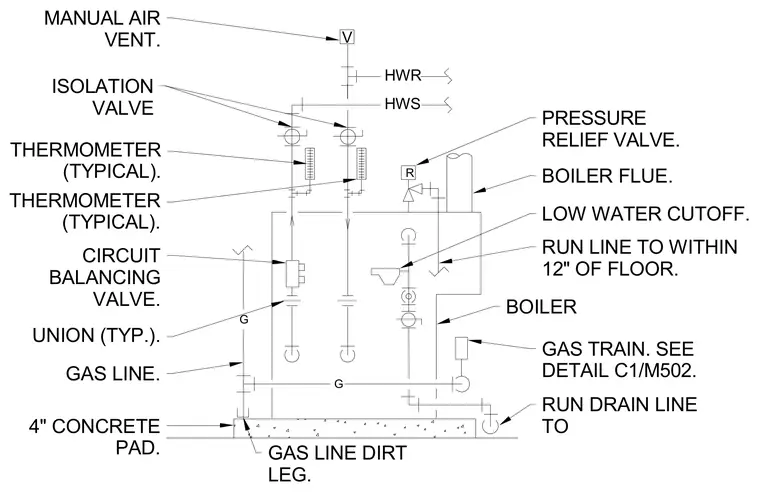

A hot water boiler sits atop a 4-inch concrete pad and connects to hot water supply and return piping equipped with typical thermometers, isolation valves, unions, and a circuit balancing valve. A manual air vent terminates the top of the piping run. A gas line with a dirt leg feeds into the gas train, which is coordinated with detail C1/M502. Safety equipment includes a pressure relief valve, a low water cutoff, a boiler flue, and a drain line running to within 12 inches of the floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
