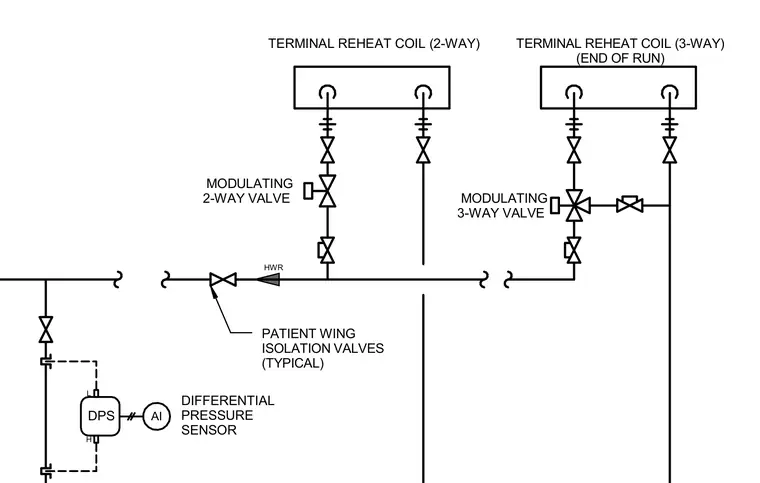

A terminal reheat coil with a modulating 3-way valve is installed at the end of the run along the hot water return piping. Patient wing isolation valves are included typically throughout the distribution network. A differential pressure sensor is tied into the system to monitor pressure drops across the piping layout.
TERMINAL REHEAT COIL (2-WAY) TERMINAL REHEAT COIL (3-WAY) (END OF RUN) MODULATING 3-WAY VALVE HWR DPS H L DIFFERENTIAL PRESSURE SENSOR PATIENT WING ISOLATION VALVES (TYPICAL) MODULATING 2-WAY VALVE AI
