Vertical Inline Pump Mounting and Piping Detail

Materials

Steel

Elements

Floors / Slabs Expansion / Control Joints Drainage Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection Expansion / Slip Connection

About this detail

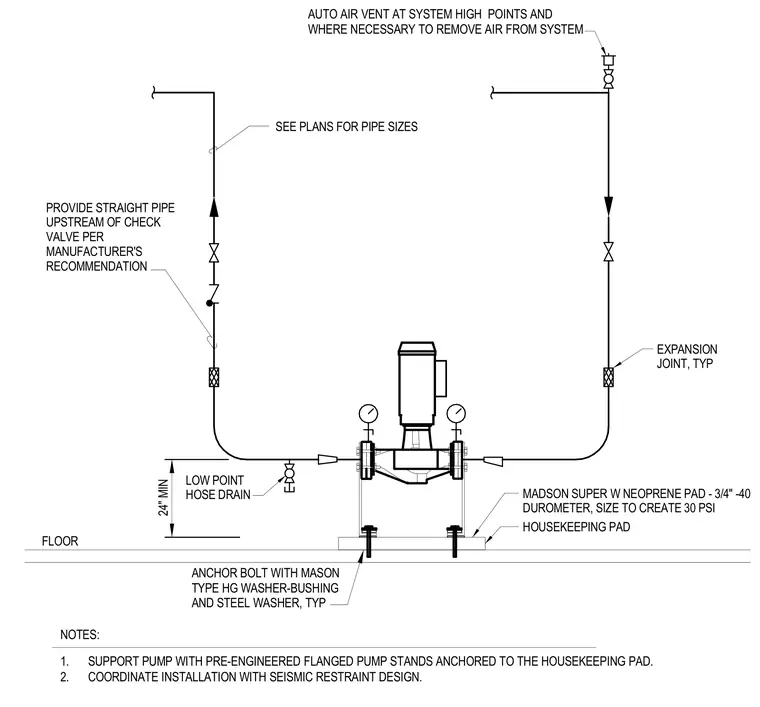

A vertical inline pump is supported on pre-engineered flanged pump stands anchored to a housekeeping pad, resting on a three-quarter-inch, forty-durometer Madson Super W neoprene pad sized to create thirty pounds per square inch. Anchor bolts feature Mason type HG washer-bushings and steel washers. The connected piping includes straight pipe upstream of the check valve per the manufacturer's recommendation, expansion joints, isolation valves, an auto air vent at system high points, and a low point hose drain twenty-four inches minimum above the floor. Installation is coordinated with the seismic restraint design.
