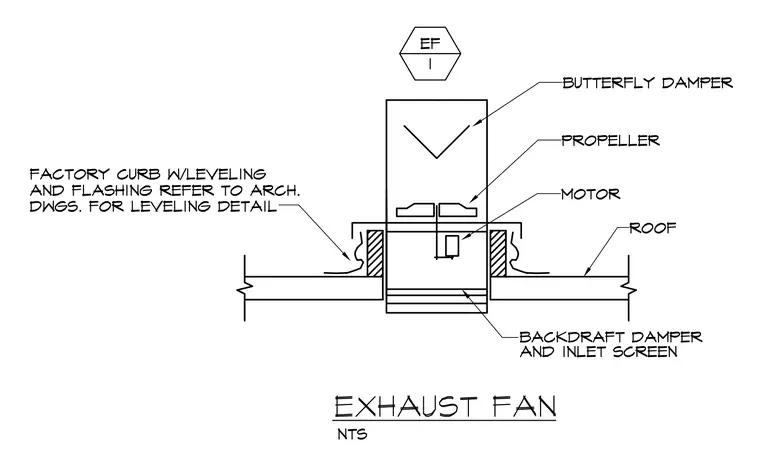

An exhaust fan unit is mounted on a factory curb with leveling and flashing that refer to architectural drawings for the leveling detail. The fan assembly incorporates a butterfly damper, a propeller, and a motor situated above the roof line. A backdraft damper and inlet screen are positioned at the bottom of the penetration through the roof deck.
