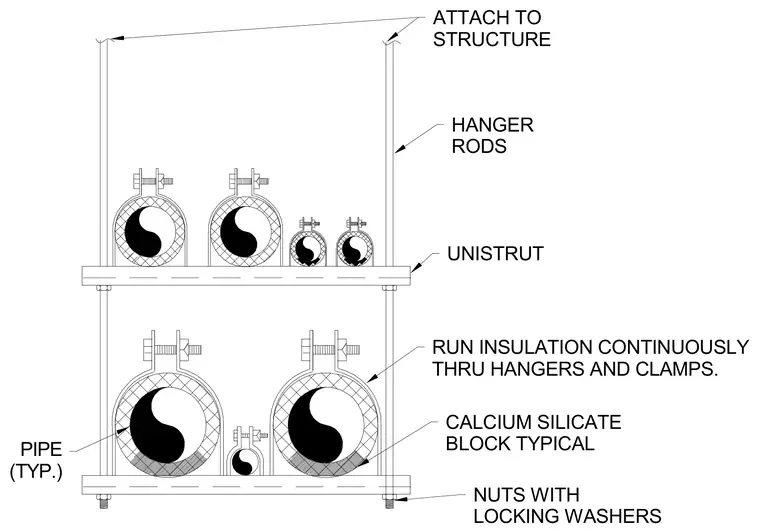

Pipes are suspended from the overhead structure using threaded hanger rods and Unistrut channels arranged in a multi-tier trapeze configuration. Hanger rods are secured with nuts and locking washers at the structural attachment and channel connections. Piping is wrapped in continuous run insulation passing through hangers and clamps, featuring calcium silicate blocks typical at support points.
PIPE (TYP.) ATTACH TO STRUCTURE NUTS WITH LOCKING WASHERS CALCIUM SILICATE BLOCK TYPICAL RUN INSULATION CONTINUOUSLY THRU HANGERS AND CLAMPS. UNISTRUT HANGER RODS
