Mechanical · M-BAZ76

Rooftop Unit Mounting and Vibration Curb Detail

Materials

Steel Timber / Wood

Elements

Roofs Waterproofing / Flashing Insulation Millwork / Casework Site / Paving Roof / Floor Openings

Connections

Base Plate / Anchorage Welded Connection

About this detail

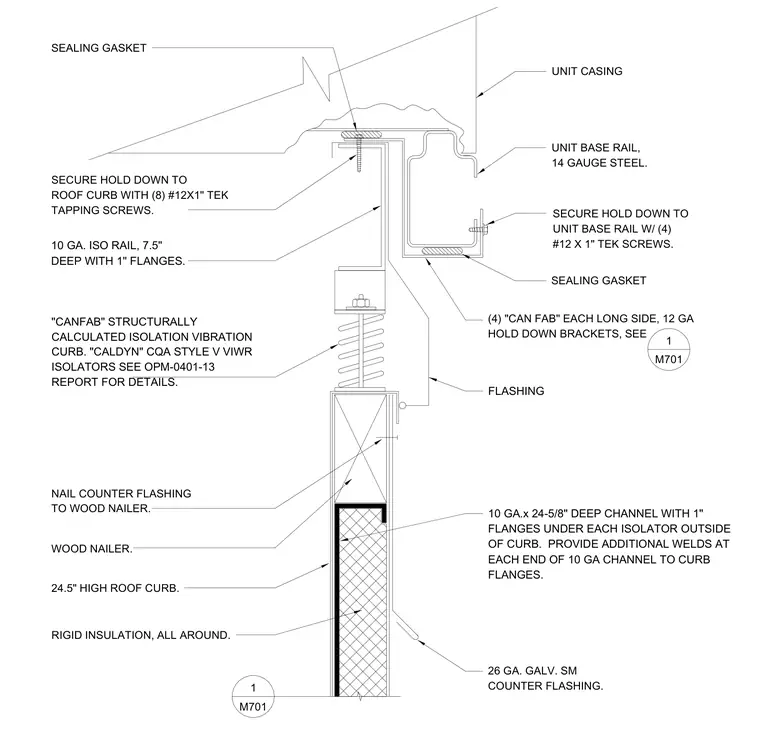

A twenty-four-and-a-half-inch high insulated roof curb supports the rooftop mechanical unit. A vibration isolation curb features Caldyn CQA style vibration isolators within a ten-gauge isolation rail. A wood nailer is secured atop the curb to receive twenty-six gauge galvanized sheet metal counter flashing, which is nailed in place. The unit base rail, constructed from fourteen-gauge steel and fitted with a sealing gasket, connects to the isolation rail and is anchored using twelve-gauge hold-down brackets secured by four number-twelve by one-inch tek screws per long side. An additional ten-gauge channel runs beneath each isolator outside the curb, welded at each end to the curb flanges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
