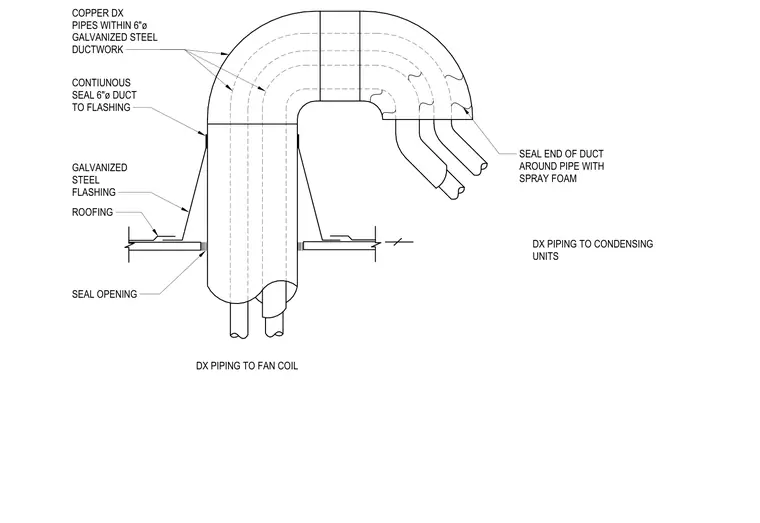

Copper direct expansion pipes run within a six-inch diameter galvanized steel ductwork sleeve penetrating the roof assembly. A galvanized steel flashing surrounds the duct with a continuous seal at the connection. The roof opening is sealed at the deck penetration, and the ends of the duct around the pipes are sealed with spray foam.
SEAL END OF DUCT AROUND PIPE WITH SPRAY FOAM DX PIPING TO CONDENSING UNITS COPPER DX PIPES WITHIN 6"ø GALVANIZED STEEL DUCTWORK DX PIPING TO FAN COIL SEAL OPENING ROOFING GALVANIZED STEEL FLASHING CONTIUNOUS SEAL 6"ø DUCT TO FLASHING
