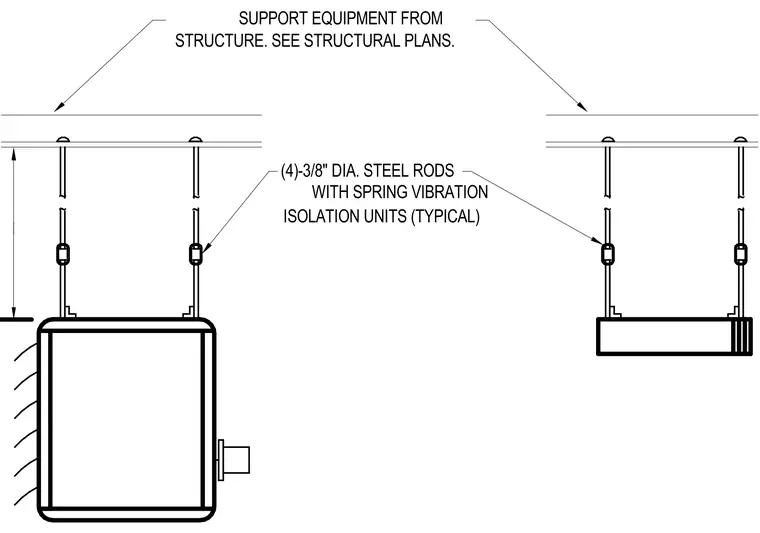

Suspended mechanical equipment hangs from the overhead structure using four three-eighths-inch diameter steel rods. Spring vibration isolation units are integrated into each hanging rod to isolate mechanical noise and vibration. The upper attachments anchor directly to the building structure per structural engineering requirements.
~ ~ ~ ~ ~ ~ ~ ~ STRUCTURE. SEE STRUCTURAL PLANS. SUPPORT EQUIPMENT FROM (4)-3/8" DIA. STEEL RODS WITH SPRING VIBRATION ISOLATION UNITS (TYPICAL)
