The support assembly for insulated refrigeration piping is mounted against a horizontal metal stud shaft wall. A B-Line B22 structural channel runs vertically at four-foot on-center spacings and is secured to the wall studs using two three-eighths-inch diameter sheet metal screws with a minimum two-and-one-quarter-inch embedment. Unistrut P1326 three-hole corner angles attach a sheet metal cover to the channel using two number ten by three-quarter-inch tek screws at the shaft. Insulated refrigerant liquid and suction lines are supported by B-Line B2000 pipe clamps with bolts and nuts sized as required. A sixteen-gauge, six-inch-long sheet metal sleeve is provided at the pipe clamp for typical insulated piping.

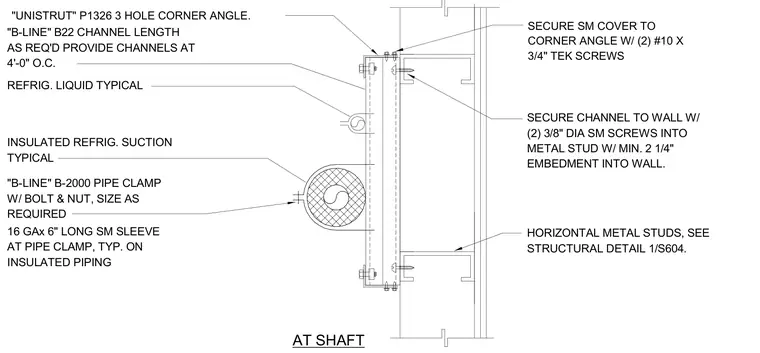

REQUIRED W/ BOLT & NUT, SIZE AS "B-LINE" B-2000 PIPE CLAMP INSULATED PIPING 16 GAx 6" LONG SM SLEEVE AT PIPE CLAMP, TYP. ON REFRIG. LIQUID TYPICAL "B-LINE" B22 CHANNEL LENGTH AS REQ'D PROVIDE CHANNELS AT 4'-0" O.C. INSULATED REFRIG. SUCTION TYPICAL SECURE CHANNEL TO WALL W/ (2) 3/8" DIA SM SCREWS INTO METAL STUD W/ MIN. 2 1/4" EMBEDMENT INTO WALL. HORIZONTAL METAL STUDS, SEE STRUCTURAL DETAIL 1/S604. "UNISTRUT" P1326 3 HOLE CORNER ANGLE. SECURE SM COVER TO CORNER ANGLE W/ (2) #10 X 3/4" TEK SCREWS AT SHAFT
