Mechanical · M-ATX4X

Combination Fire Smoke Damper Detail

Materials

Elements

Walls Doors Floors / Slabs Connections / Plates Roof / Floor Openings

About this detail

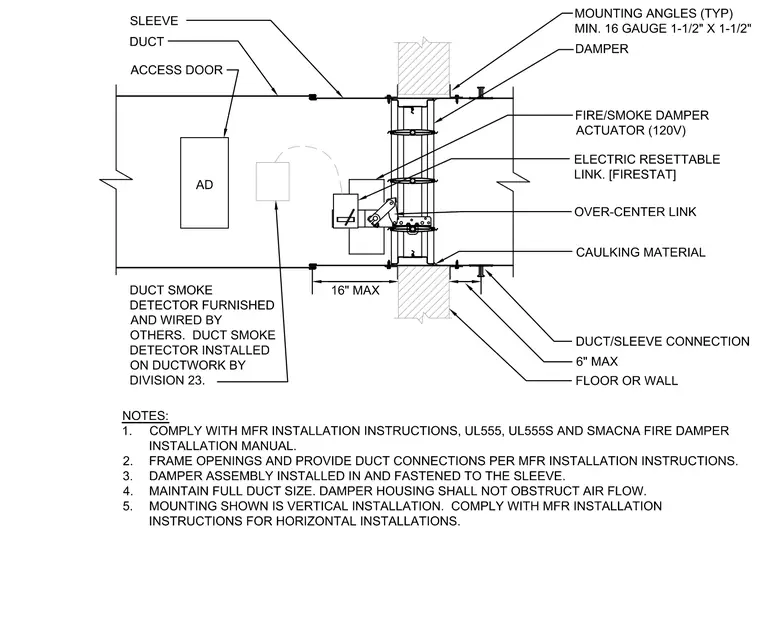

A combination fire smoke damper is installed in and fastened to a duct sleeve, which passes through a floor or wall opening. Minimum 16-gauge 1-1/2 inch by 1-1/2 inch mounting angles secure the sleeve assembly to the structural wall or floor with caulking material applied at the joint. The damper assembly includes a 120-volt actuator, an electric resettable link firestat, and an over-center link. A duct smoke detector is installed on the ductwork nearby, with maximum distances specified for connections and components.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
