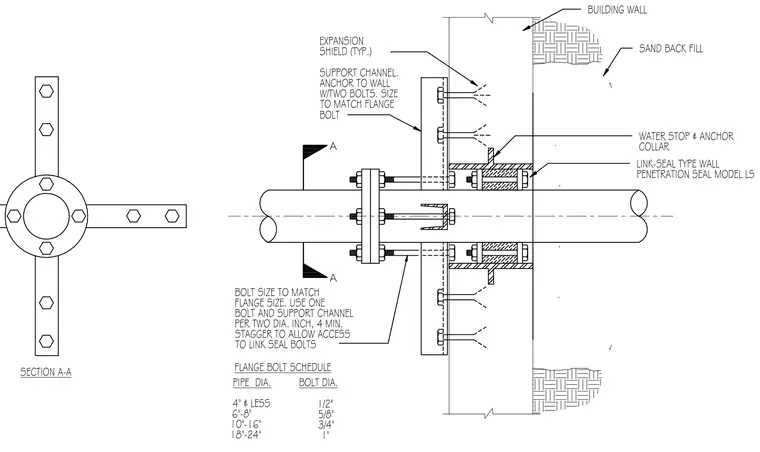

A pipe penetrates a building wall through a Link-Seal type wall penetration seal model LS equipped with a water stop and anchor collar. The pipe is supported by a structural channel anchored to the building wall using expansion shields. Bolt sizes are sized to match the pipe flange schedule, ranging from 1/2 inch for pipes 4 inches and less up to 1 inch for pipes 18 to 24 inches. Support channels utilize one bolt per two diameter inches with a 4-inch minimum, staggered to allow access to the link-seal bolts. Sand backfill surrounds the exterior penetration area.
SAND BACK FILL COLLAR WATER STOP & ANCHOR LINK-SEAL TYPE WALL BUILDING WALL SHIELD (TYP.) EXPANSION BOLT A TO MATCH FLANGE SUPPORT CHANNEL. W/TWO BOLTS. SIZE ANCHOR TO WALL A 1/2" 5/8" BOLT DIA. 4" & LESS 10"-16" 6"-8" PIPE DIA. FLANGE SIZE. USE ONE BOLT AND SUPPORT CHANNEL PER TWO DIA. INCH, 4 MIN. FLANGE BOLT SCHEDULE STAGGER TO ALLOW ACCESS TO LINK SEAL BOLTS BOLT SIZE TO MATCH 1" 18"-24" 3/4" SECTION A-A PENETRATION SEAL MODEL LS
