Mechanical · M-ASCC9

Chiller Piping Detail

Materials

Elements

About this detail

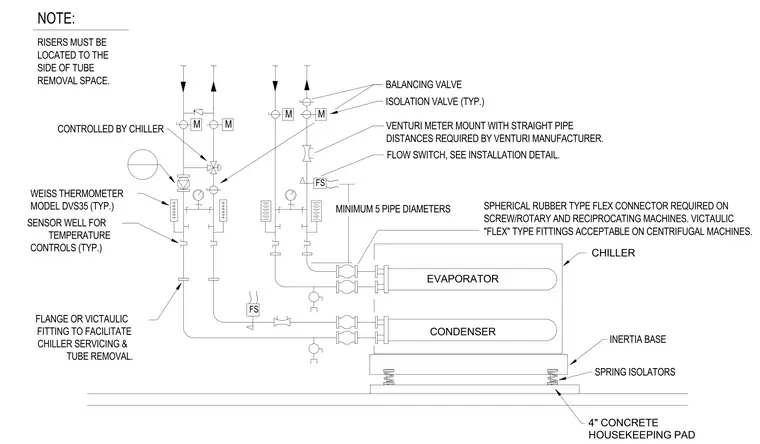

The chiller unit sits atop an inertia base supported by spring isolators resting on a four-inch concrete housekeeping pad. The evaporator and condenser barrels connect to piping systems using spherical rubber flexible connectors or Victualic flexible fittings, with specific requirements for centrifugal versus screw, rotary, and reciprocating machines. Piping runs include isolation valves, balancing valves, temperature sensor wells, Weiss thermometers model DVS35, and Venturi meter mounts installed with straight pipe lengths matching manufacturer requirements. Flow switches are positioned at required intervals, and flanges or Victualic fittings are incorporated to facilitate chiller servicing and tube removal. Risers are routed to the side of the tube removal space.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
