Mechanical · M-ARK5P

Pump Piping and Support Connection Detail

Materials

Concrete Steel

Elements

Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

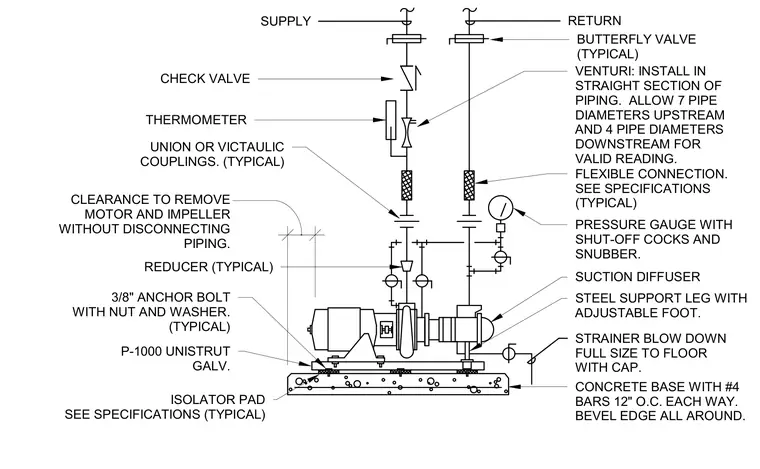

The pump is mounted on a concrete base reinforced with number four reinforcing bars spaced twelve inches on center each way with a beveled edge all around. Steel support legs with adjustable feet rest on isolator pads and are anchored using three-eighths-inch anchor bolts with nuts and washers secured to galvanized P-one-thousand Unistrut channels. The suction side features a suction diffuser, a pressure gauge with shut-off cocks and a snubber, and a strainer blow down piped full size to the floor with a cap. Flexible connections, unions or Victaulic couplings, reducers, and butterfly valves are installed on the piping run. The supply and return lines incorporate thermometers, check valves, and a venturi flow meter installed in a straight section of piping allowing seven pipe diameters upstream and four pipe diameters downstream for valid readings. Clearances are maintained to allow the removal of the motor and impeller without disconnecting the piping.
