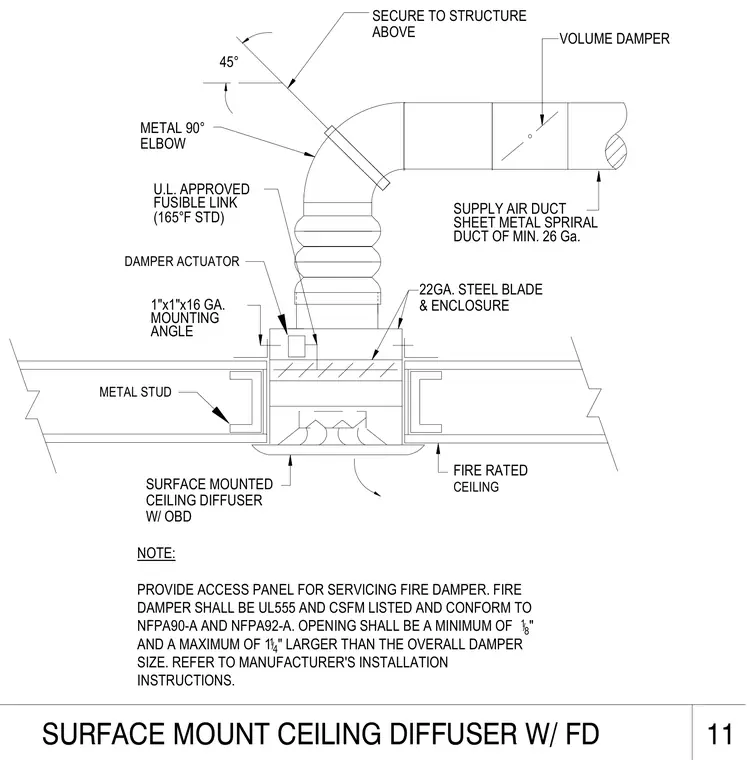

A surface-mounted ceiling diffuser with opposed-blade damper connects to a supply air duct formed from a minimum twenty-six gauge sheet metal spiral duct. A metal ninety-degree elbow directs airflow into the assembly and is secured to the structure above. The fire damper incorporates twenty-two gauge steel blades and enclosure, a damper actuator, and a one-inch by one-inch by sixteen-gauge mounting angle. A UL-approved fusible link rated at one hundred sixty-five degrees Fahrenheit standard is provided. The assembly is installed within a fire-rated ceiling framed with metal studs, maintaining an opening size between one-eighth inch and one and one-quarter inch larger than the overall damper size.
VOLUME DAMPER 45° SECURE TO STRUCTURE ABOVE METAL 90° ELBOW 11 SURFACE MOUNT CEILING DIFFUSER W/ FD DUCT OF MIN. 26 Ga. SHEET METAL SPRIRAL SURFACE MOUNTED CEILING DIFFUSER W/ OBD FIRE RATED 1"x1"x16 GA. MOUNTING ANGLE U.L. APPROVED FUSIBLE LINK (165°F STD) 22GA. STEEL BLADE & ENCLOSURE SUPPLY AIR DUCT NOTE: PROVIDE ACCESS PANEL FOR SERVICING FIRE DAMPER. FIRE DAMPER SHALL BE UL555 AND CSFM LISTED AND CONFORM TO NFPA90-A AND NFPA92-A. OPENING SHALL BE A MINIMUM OF 1/8 " AND A MAXIMUM OF 1 1 /4 " LARGER THAN THE OVERALL DAMPER SIZE. REFER TO MANUFACTURER'S INSTALLATION INSTRUCTIONS. DAMPER ACTUATOR CEILING METAL STUD
