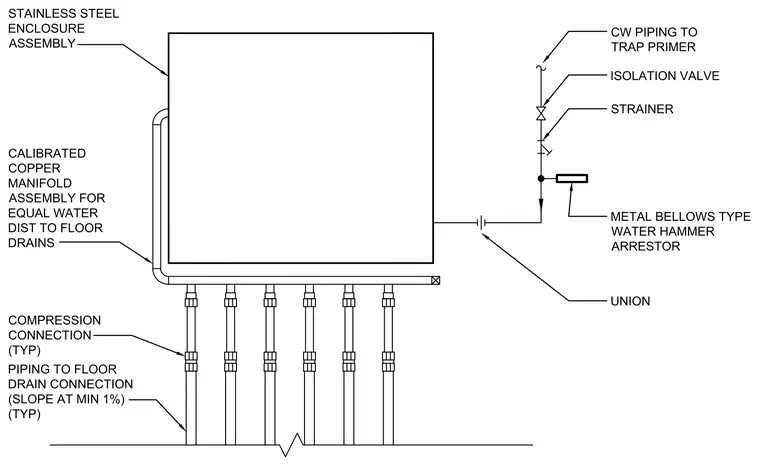

Cold water piping connects to a trap primer through an isolation valve, strainer, and a union joint, with a metal bellows type water hammer arrestor tied into the supply line. The line feeds a calibrated copper manifold assembly designed for equal water distribution to multiple floor drains. Each downward drop piping connection utilizes typical compression connections and slopes at a minimum of one percent toward the floor drain connection.
ISOLATION VALVE STRAINER CW PIPING TO TRAP PRIMER CALIBRATED COPPER MANIFOLD ASSEMBLY FOR EQUAL WATER DIST TO FLOOR DRAINS PIPING TO FLOOR DRAIN CONNECTION (SLOPE AT MIN 1%) (TYP) COMPRESSION CONNECTION (TYP) STAINLESS STEEL ENCLOSURE ASSEMBLY METAL BELLOWS TYPE WATER HAMMER ARRESTOR UNION
