Mechanical · M-AQJYB

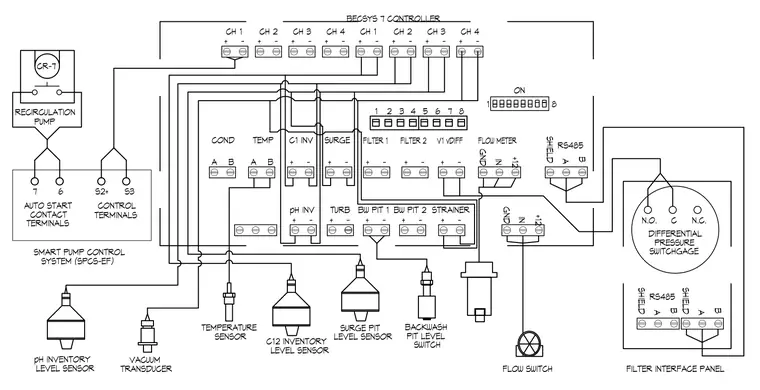

Filter Interface Panel Wiring Diagram

About this detail

The Becsys 7 controller links to multiple system inputs including temperature, pH, inventory level, surge pit level, vacuum transducer, flow switch, and backwash pit level switch. Communication lines route through RS485 connections with shielded cables. Control wiring interfaces with the smart pump control system and recirculation pump auto start contact terminals. Differential pressure switchgage and flow meters integrate into the terminal block arrangement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
