Mechanical · M-AQJQD

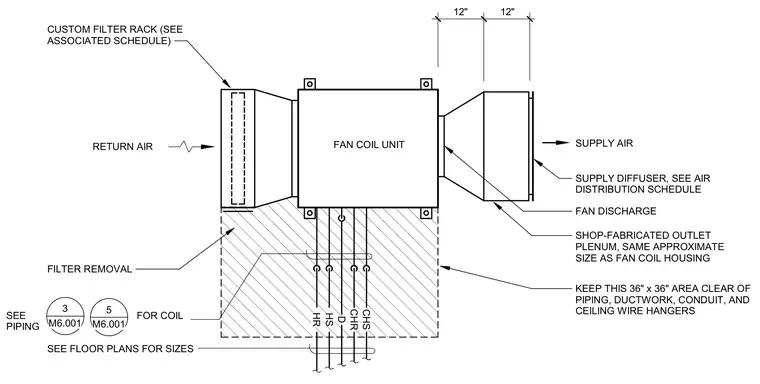

Typical Exposed Fan Coil Unit Assembly

Elements

About this detail

An exposed fan coil unit connects to a custom filter rack on the return air side and a shop-fabricated outlet plenum on the supply side, matching the housing size and feeding a supply diffuser. A designated thirty-six by thirty-six inch clearance zone beneath the unit must remain free of piping, ductwork, conduit, and ceiling wire hangers to allow for filter removal and coil maintenance. Chilled water supply and return, hot water supply and return, and drain lines connect to the bottom of the unit with sizes coordinated per the floor plans and associated piping schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
