A thermostatic mixing valve is installed beneath the counter and set to a 110-degree Fahrenheit outlet temperature to deliver tempered water to the fixture faucet. The valve connects to hot water supply and cold water supply lines, each equipped with a loose key stop. Supply risers route water to the faucet, while an offset tailpiece and P-trap handle the drainage below. Under-sink protection is provided for accessible fixtures per project notes.

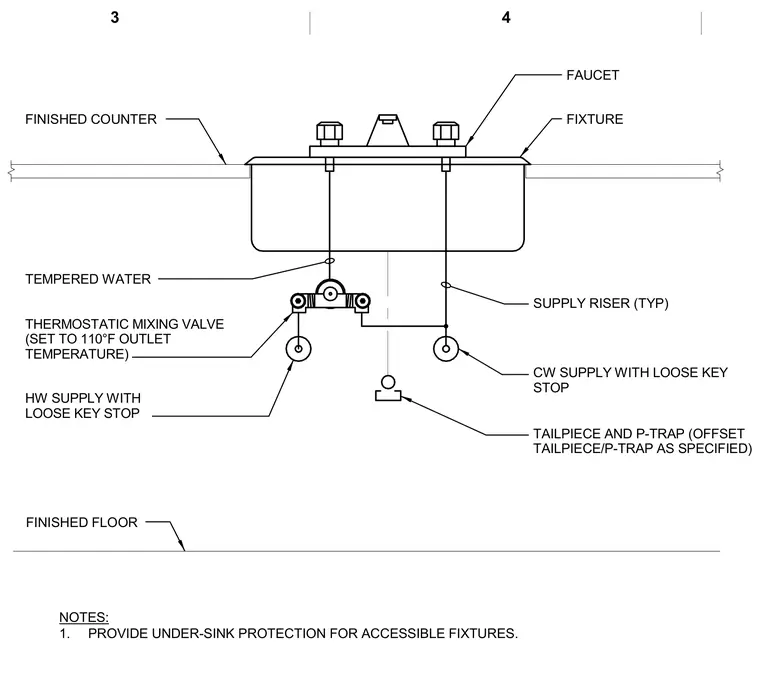

NOTES: 1. PROVIDE UNDER-SINK PROTECTION FOR ACCESSIBLE FIXTURES. THERMOSTATIC MIXING VALVE (SET TO 110°F OUTLET TEMPERATURE) TAILPIECE AND P-TRAP (OFFSET TAILPIECE/P-TRAP AS SPECIFIED) TEMPERED WATER FINISHED COUNTER HW SUPPLY WITH LOOSE KEY STOP FINISHED FLOOR SUPPLY RISER (TYP) FIXTURE CW SUPPLY WITH LOOSE KEY STOP FAUCET 3 4
