Mechanical · M-AKHSF

Pedestal Pipe Support

Materials

Concrete Reinforced Concrete Steel

Elements

Anchors / Embeds Connections / Plates Reinforcing

Connections

Bolted Connection Embed Plate

About this detail

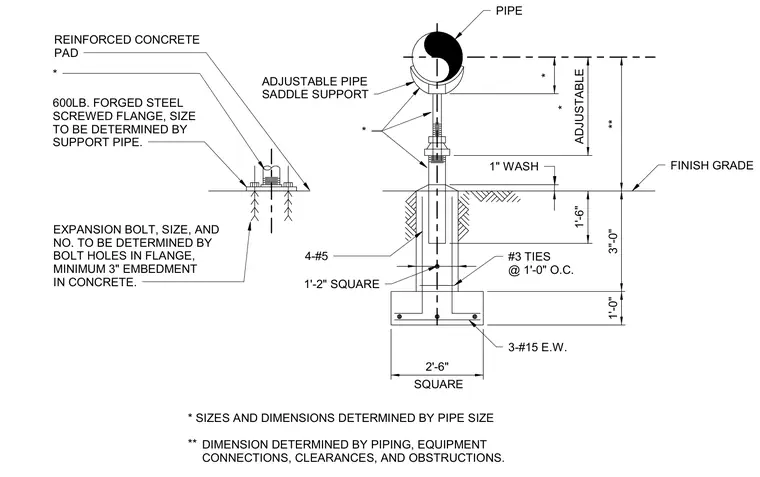

An adjustable pipe saddle support rests on an elevated threaded rod secured into a six-hundred-pound forged steel screwed flange anchored to a reinforced concrete pad. The concrete pedestal measures one foot two inches square with four number five vertical reinforcing bars and number three ties spaced at one foot zero inches on center. The base footing measures two feet six inches square with three number fifteen bars each way beneath a one-inch wash sloping to finish grade. Expansion bolts secure the flange with a minimum three-inch embedment into the concrete. All overall sizes and dimensions are determined by the supported pipe size, equipment connections, clearances, and obstructions.
