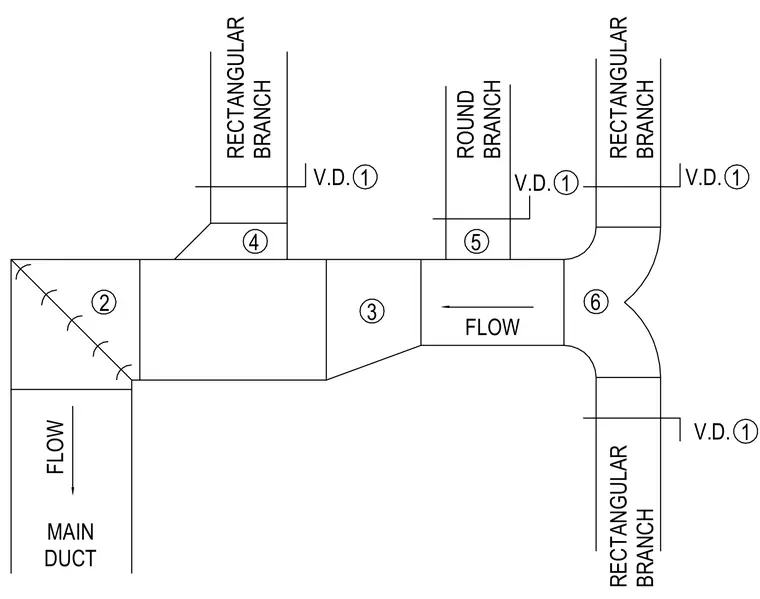

A main duct transitions into multiple rectangular and round branch ducts featuring volume dampers for airflow control. Standard sheet metal transitions and branch takeoffs are installed along the primary air distribution path.
FLOW ROUND BRANCH RECTANGULAR BRANCH RECTANGULAR BRANCH 1 V.D. 1 V.D. 1 V.D. 4 5 1 V.D. RECTANGULAR BRANCH FLOW MAIN DUCT 2 3 6
