Mechanical · M-AK4YQ

Wall Mounted Fan Coil Detail

Materials

Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)

Elements

About this detail

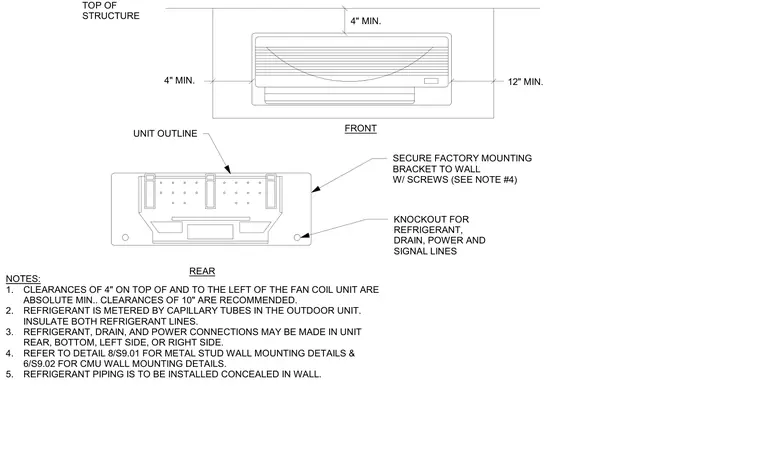

A wall-mounted fan coil unit requires an absolute minimum clearance of four inches on top and to the left, with twelve inches recommended to the right side and four inches minimum from the top of the structure. The factory mounting bracket is secured directly to the wall using screws into metal stud or concrete masonry unit construction. Refrigerant lines, condensate drain, power, and signal lines route through designated knockouts and are installed concealed within the wall assembly.
