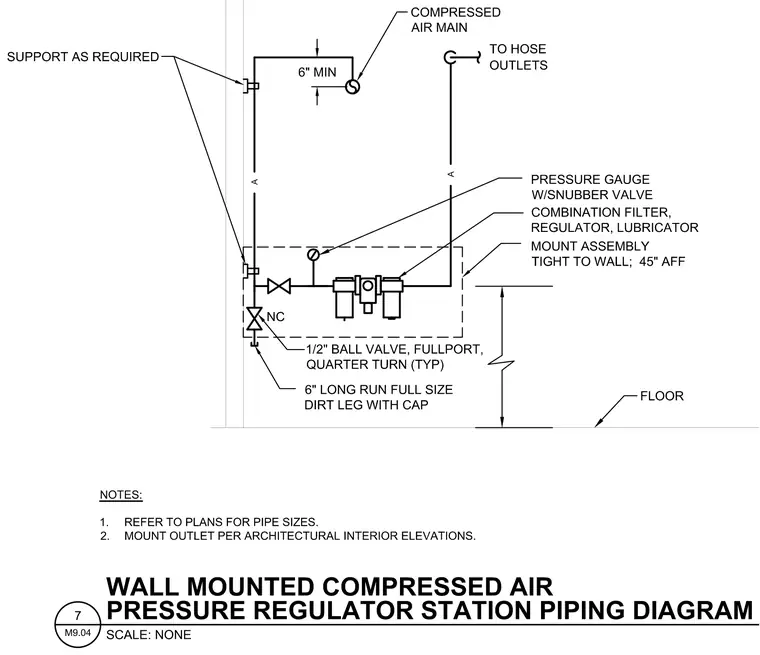

This diagram details a wall mounted compressed air pressure regulator station positioned forty-five inches above the floor. The assembly connects to a compressed air main overhead with a minimum six-inch clearance and includes a one-half-inch full port quarter turn ball valve, a pressure gauge with a snubber valve, and a combination filter, regulator, and lubricator mount assembly. A normally closed valve feeds a six-inch long run full size dirt leg with a cap at the bottom. Support is provided as required along the wall, and piping routes up to hose outlets.
