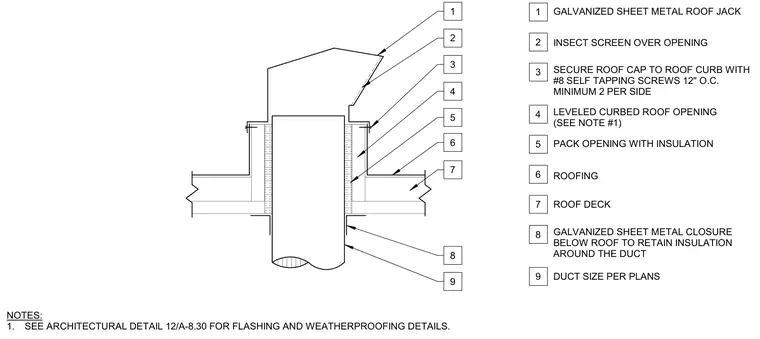

A galvanized sheet metal roof jack passes through a leveled curbed roof opening over the roof deck and roofing. The opening around the duct is packed with insulation and retained below the roof by a galvanized sheet metal closure. An insect screen covers the opening, and the roof cap is secured to the roof curb using number eight self-tapping screws at twelve inches on center with a minimum of two screws per side.
GALVANIZED SHEET METAL ROOF JACK LEVELED CURBED ROOF OPENING (SEE NOTE #1) 1 3 4 5 2 PACK OPENING WITH INSULATION ROOFING ROOF DECK 6 7 8 GALVANIZED SHEET METAL CLOSURE BELOW ROOF TO RETAIN INSULATION AROUND THE DUCT NOTES: 1. SEE ARCHITECTURAL DETAIL 12/A-8.30 FOR FLASHING AND WEATHERPROOFING DETAILS. 1 2 3 4 5 6 7 8 9 INSECT SCREEN OVER OPENING SECURE ROOF CAP TO ROOF CURB WITH #8 SELF TAPPING SCREWS 12" O.C. MINIMUM 2 PER SIDE DUCT SIZE PER PLANS 9
