Mechanical · M-AC4XN

End Suction Pump with Inertia Base and Piping Details

Materials

weld

Elements

Floors / Slabs Drainage Connections / Plates

Connections

Welded Connection

About this detail

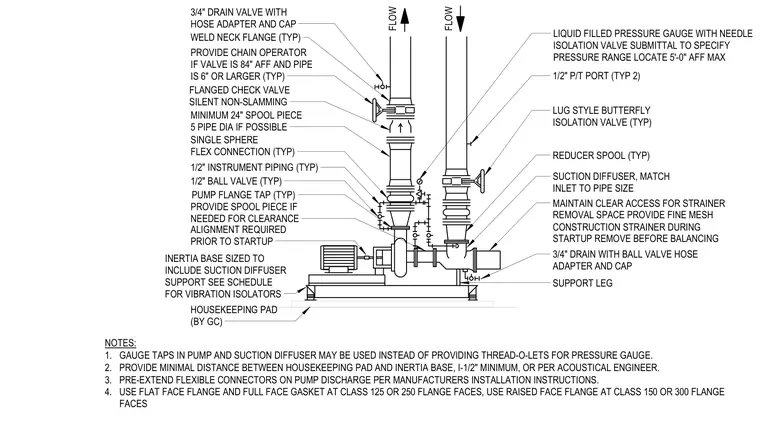

An end suction pump is mounted on an inertia base sized to include a suction diffuser support, resting on a concrete housekeeping pad by the general contractor with vibration isolators per schedule. The suction side includes a suction diffuser with support leg, fine mesh construction strainer, a lug style butterfly isolation valve, and a half-inch P/T port with instrument piping and ball valve. The discharge side features a single sphere flexible connection, reducer spool, minimum 24-inch spool piece, flanged check valve, weld neck flange, and a 3/4-inch drain valve with hose adapter and cap. Pressure gauges with needle isolation valves are installed on the piping up to 5 feet above finished floor, and alignment is required prior to startup.
