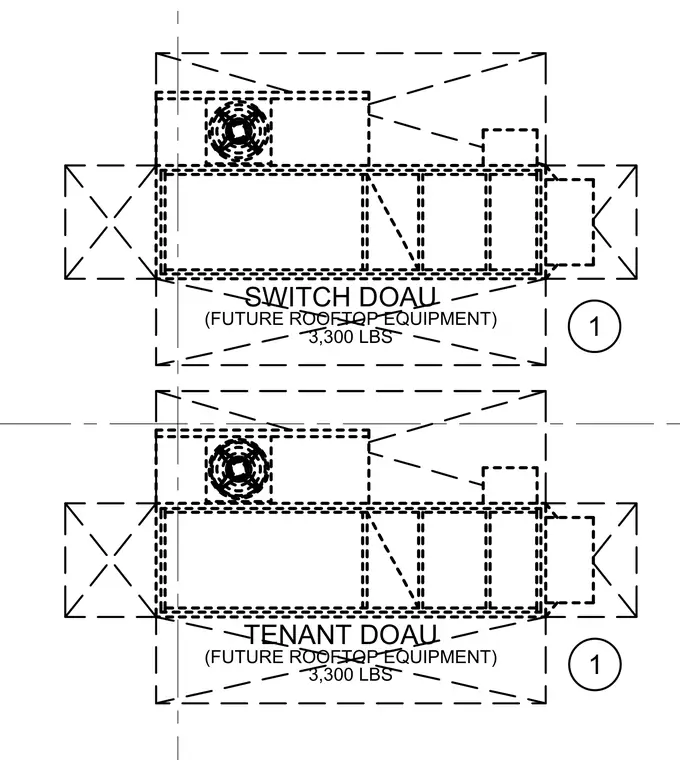

Two dedicated outdoor air units are shown in plan view with dashed outlines indicating future rooftop equipment weighing three thousand three hundred pounds each. The rooftop units are designated as switch DOAU and tenant DOAU.
SWITCH DOAU TENANT DOAU (FUTURE ROOFTOP EQUIPMENT) (FUTURE ROOFTOP EQUIPMENT) 3,300 LBS 3,300 LBS 1 1
